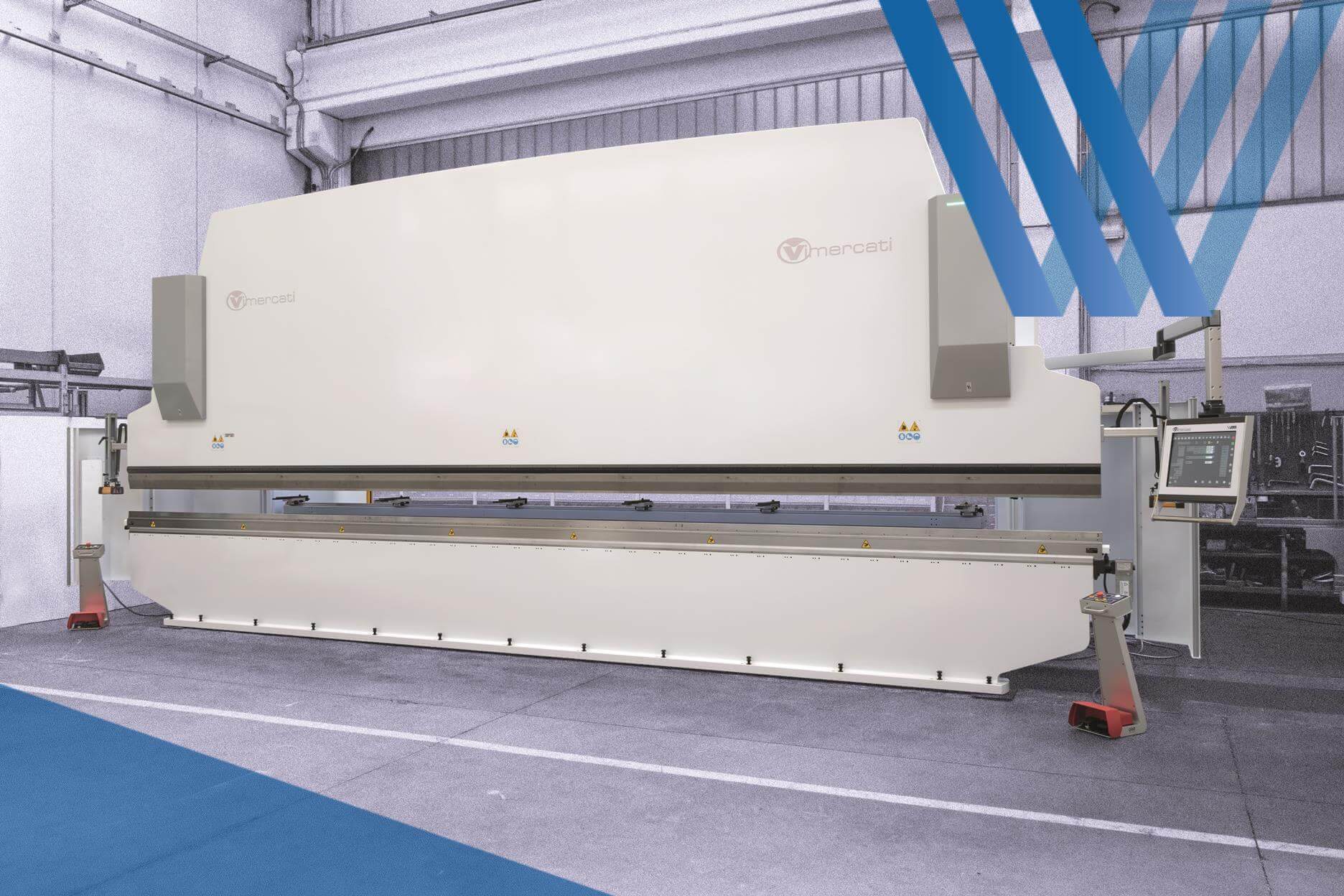

TIN SHEET METAL PRESS BRAKES

Made with technology entirely derived from our synchronised press brakes with integrated electronics, but matching the specific needs of the tin sheet metal sector, they are manufactured with a very sturdy structure with a 750 or 1000 gap, hemming tool built into the bottom table with the option of a die changeover, crowning, 2-axis back gauge: X 1000 mm stroke – R 250 mm stroke with 500-mm wide rear loading platform.

RELIABILITY

ACCURACY

Pressa piegatrice per lattoneria
  • 500-mm Wide rear Table with three support points, first front stop, second stop at 50 mm, third stop at 500 mm.
  • two-axis rear gauge: X 1000 stroke, R 250 stroke.
  • Pneumatically-controlled hemming feature built into the table, managed from the CNC, with die changeover option.

SHEET METAL RANGE

  • from 100 to 200 tonnes
  • from 6500 to 10050 mm in length
Download the complete catalog of options
